MAN LED DRL unit orange 2014-2017

MAN TG1 LED DRL unit orange.

Would you like to replace your original white LED daytime running lights of your MAN for an orange colour? Then this DRL set may be the set you are looking for. The set consists of two LED plates with which you can change both the left and right side. You can easily replace the original mounted lighting for the orange version. At the bottom of the page you will find the steps you need to follow. The DRL set is only made for a MAN TGS, TGA and TGX truck whose construction year is between 2012 and 06-2017. The set is made to fit a MAN and will therefore not fit in any other brand of truck. The color that the MAN TG1 daytime running lights emit orange is the same as that of your indicator.

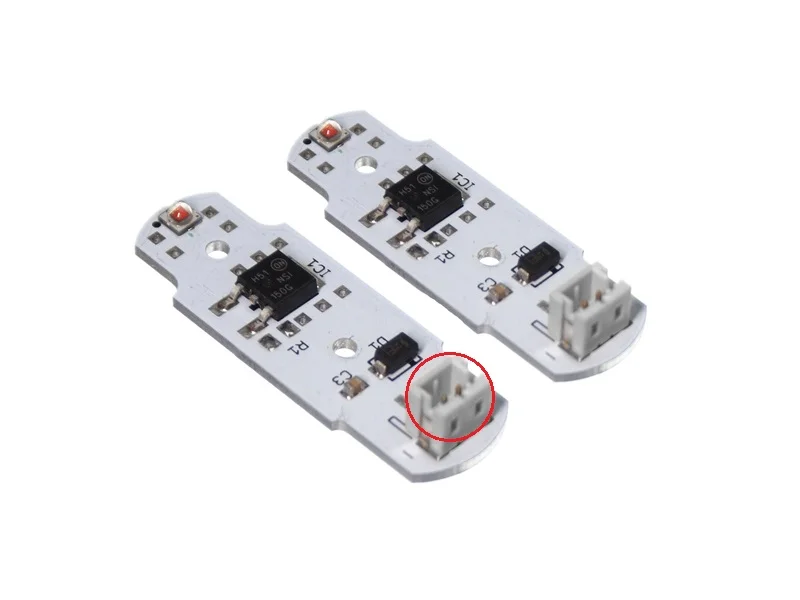

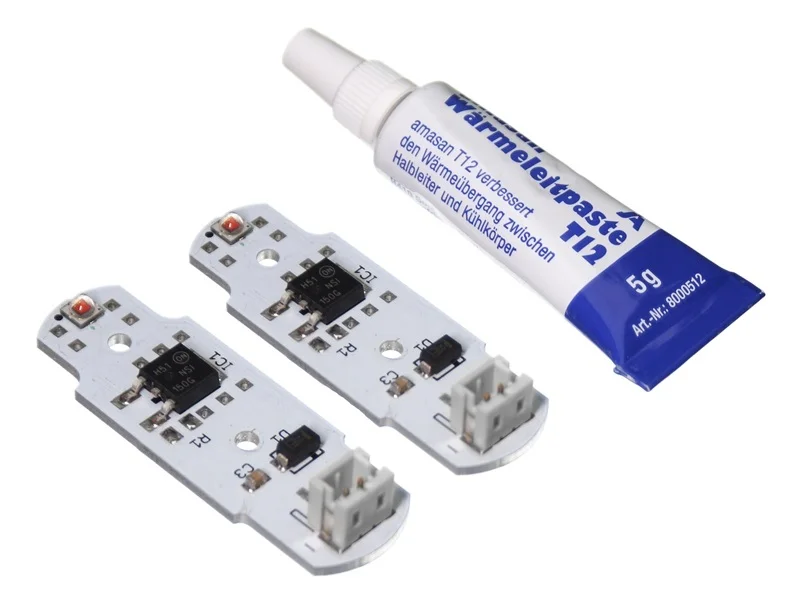

A set consists of two LED plates. Each PCB is equipped with one powerful LED, which will light up the entire module. The LED module is exactly the same as the original mounted one. As a result, replacing the module is done quickly and you do not have to adjust anything in the original lamp. The LED unit is made of high quality material. This guarantees a long service life. In short, by mounting the LED lighting in your MAN you can be sure that you can hit the road well lit. The MAN TG1 LED orange daytime running lights do not have an E-approval. That is why you have to reassemble the original one for the MOT.

Other models:

Do you have a MAN truck, but don't want to change the daytime running lights to the color orange? Or do the units not match those shown in the photo? Then know that this DRL module is also available in other colors and models. View the other options below:

• MAN TG2 LED DRL orange 2017+
• MAN TG3 LED DRL orange 2021+

• MAN TG3 LED DRL w-white 2021+

Installation:

To install the MAN TG1 LED daytime running lights, you must follow the following steps. The installation of the orange DRL unit will take about half an hour per headlight. Figure 4 shows an example of how the set will eventually light up after installation.

1. Remove the connector from the existing lighting.
2. Remove the screws securing the original diode holders.
3. Remove the diode holders from the cooling plates.
4. Remove the thermal paste and clean the surface well.
5. Bring the supplied thermal paste in a thin even layer to the cooling plates where the lamp will be mounted.
6. Push the diode holder into the thermal paste and secure it carefully with the original screw.
7. Insert the connector into the new diode holder.
8. The lighting of your MAN TG1 is ready for use.

Do you not only want to replace the orange LED daytime running lights on your MAN TG1? But are you looking for more LED lighting that you can install in or around your MAN truck? Then take a look at the page MAN lighting.
